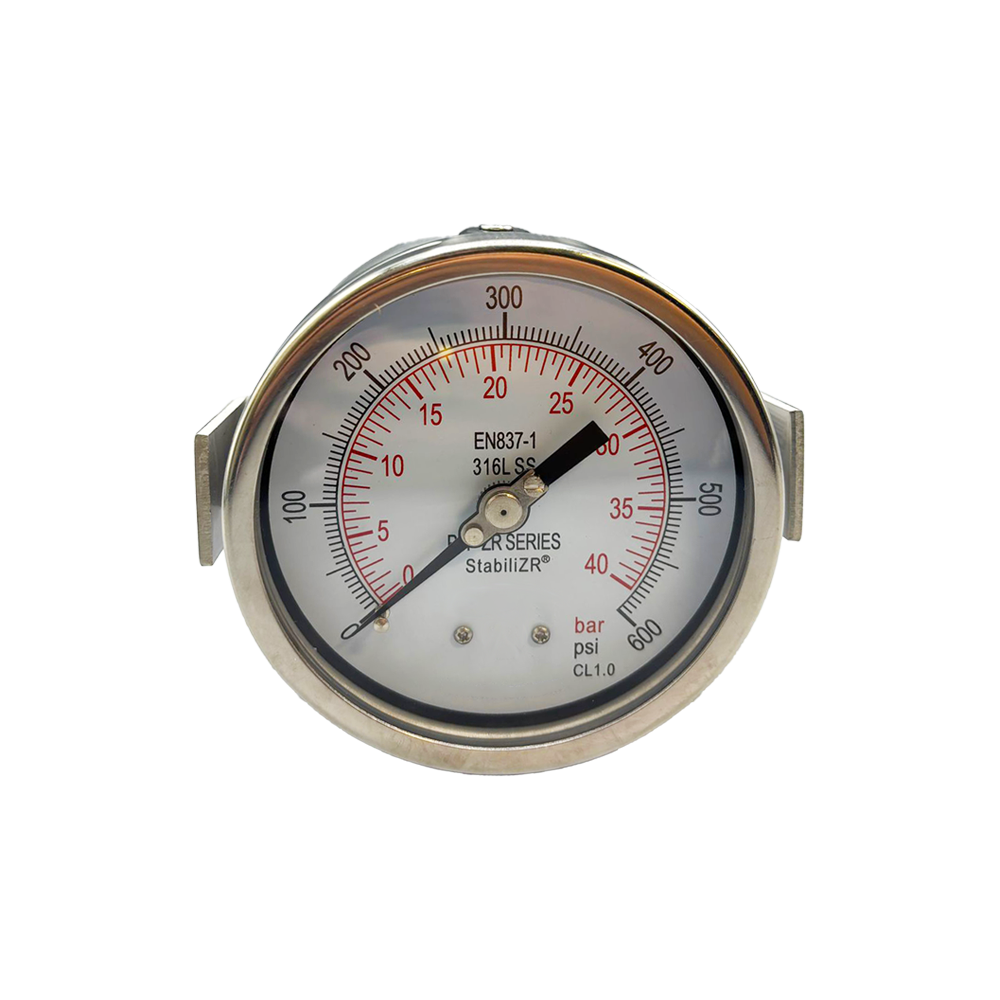

4″ Dial Pressure Gauge, Stainless Steel, FPM Clamp, 1/2″ Back Entry Connection
Key Information
This fully stainless steel pressure gauge is engineered for reliable pressure monitoring in demanding industrial environments where vibration, pulsation, and harsh operating conditions are present. Featuring a patented dampened movement system, it provides the stability of a liquid-filled gauge without the drawbacks of conventional filling fluids, ensuring clear and accurate readings throughout its service life. With a rugged stainless steel construction, IP66 protection rating, and a 1/2″ BSP back entry connection, this gauge is available in pressure ranges from 30 to 6000 PSI and is ideally suited to hydraulic systems, pumps, compressors, process plant, and general industrial applications.
Features
- FPM Clamp
- 4″ (100mm) dial for clear and accurate pressure indication
- Patented dampened movement technology reduces the effects of vibration and pulsation

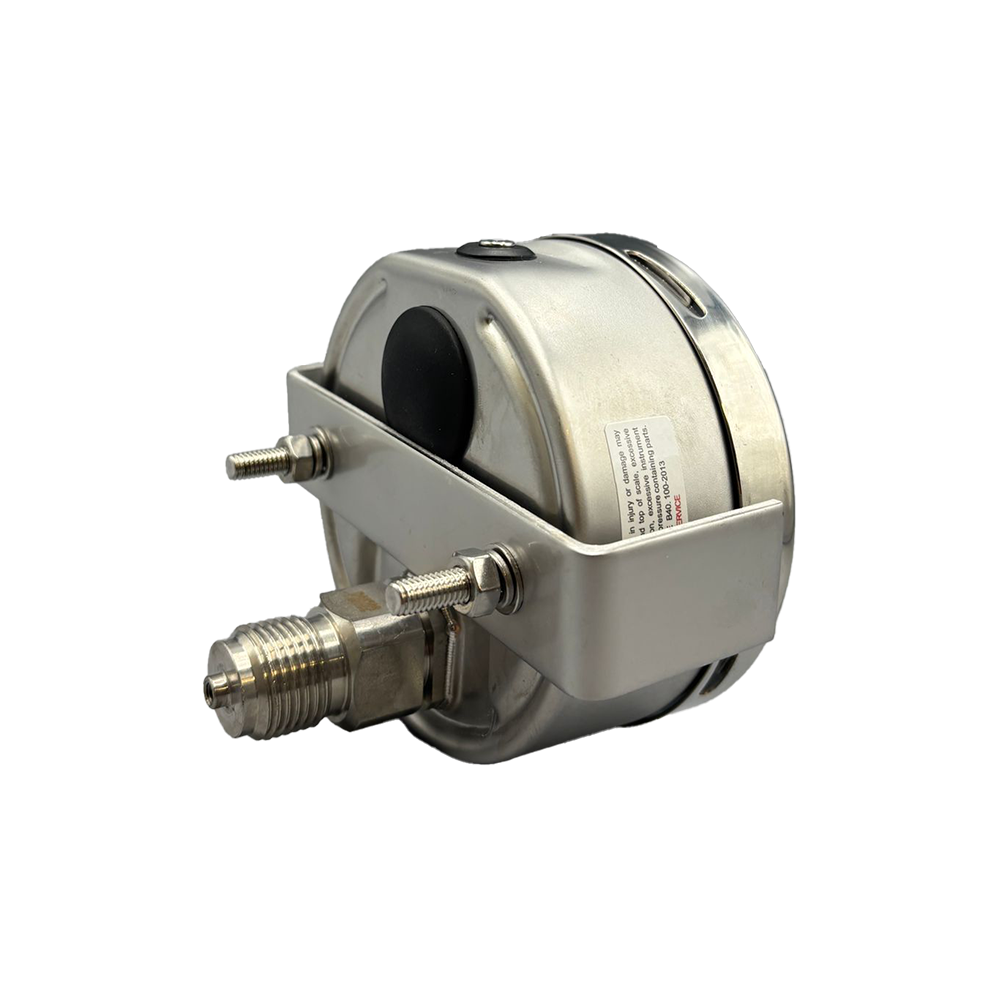

- 1/2″ BSP back entry connection
- Fully stainless steel construction with 316L stainless steel wetted parts
- Class 1A accuracy (±1% full scale) for precise measurement
- IP66 / NEMA 4X protection for demanding environments
- Laser welded case and socket for enhanced durability
4″ Dial Stainless Steel Pressure Gauge – FPM Clamp, 1/2″ Back Entry
The VIP 4″ Dial Stainless Steel Pressure Gauge is designed for pressure monitoring in industrial and process applications. Featuring a clear 100mm dial and durable stainless steel construction, it provides an easy-to-read pressure indication in demanding working environments.
The gauge features a 1/2″ back entry connection and an FPM clamp arrangement, making it suitable for compatible installations where this connection type is required.
Key features:
- 4″ (100mm) dial for clear pressure readings
- Stainless steel case construction
- FPM clamp connection
- 1/2″ back entry configuration
- Designed for industrial pressure monitoring
- Suitable for compatible process and mechanical systems
Applications:
Suitable for pressure measurement in industrial equipment, process systems and other applications requiring a stainless steel pressure gauge.
Installation:
Check the required pressure range, connection dimensions and material compatibility before ordering or installation.
