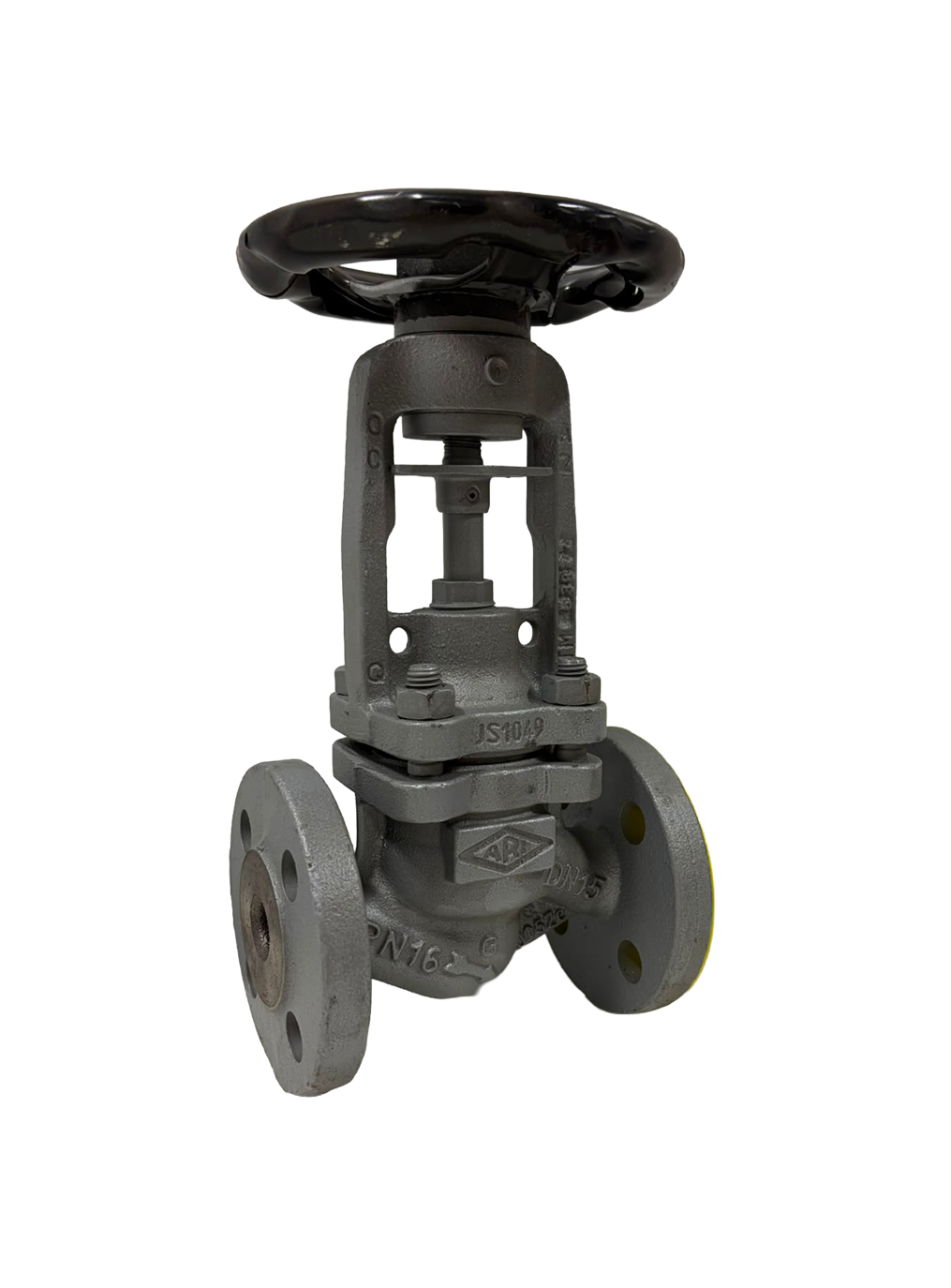

ARI-FABA Plus Flanged PN16 SG Iron Bellows Sealed Valves
ARI-Armaturen Model Number: 22.046
ARI-Armaturen
Founded in Germany in 1950, ARI-Armaturen is an established international manufacturer of industrial valves and system solutions, with more than 75 years of engineering experience. Its extensive portfolio covers control, isolation, safety and steam trapping, serving applications across industrial processing, chemical plants, shipbuilding and building services. Combining German manufacturing expertise with a global sales and support network, ARI offers over 20,000 products in more than 200,000 variants. From individual valves to complete steam and condensate solutions, the brand focuses on quality, reliability and meeting the demands of industrial operation.
Key Information
The ARI-FABA Plus Flanged PN16 SG Iron Bellows Sealed Valve provides manual isolation for industrial pipework, combining a robust SG iron body with a double-wall stainless steel bellows seal. Secondary graphite gland packing provides an additional stem seal, while the non-rising handwheel and fine-thread stem allow controlled operation. Featuring metal seating, a heat-dissipating bonnet and a position indicator, the valve is designed for practical operation with flanged pipework connections.
Features
- Manually operated stop valve with straight-through body design
- SG iron body and bonnet in EN-JS1049
- PN16 flanged connections
- Double-wall stainless steel bellows seal
- Secondary pure graphite gland packing
- Metal-seated shut-off design
- Non-rising handwheel with fine-thread stem
- Position indicator fitted as standard
- Integrated locking device and stem anti-rotation feature
- Heat-dissipating bonnet
- Lubricating nipple for stem lubrication
- Face-to-face dimensions to DIN EN 558, series 1
