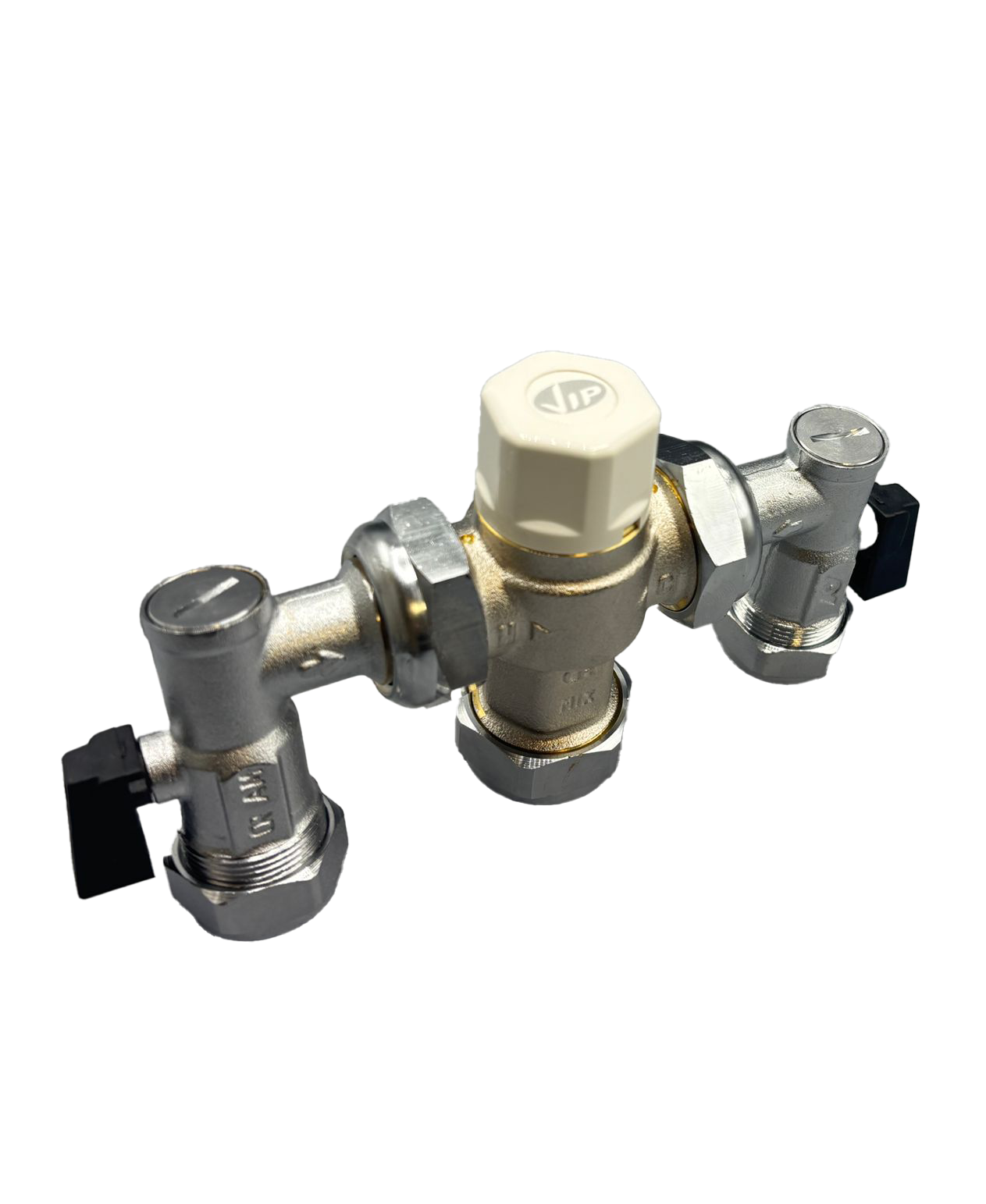

VIP 4 in 1 Thermostatic Failsafe Mixing Valves with Check Valves, Strainers & Test Points
Key Information
Crafted for unparalleled safety and efficiency, the VIP 4-in-1 Thermostatic Mixing Valve (TMV) is a professional-grade solution for a wide range of water systems. This valve is a testament to quality, holding multiple key approvals including WRAS, BuildCert, TMV2, and TMV3, ensuring it meets the highest standards for safety and performance.
Its advanced 4-in-1 design integrates non-return valves, test points, and strainers, simplifying installation while providing comprehensive protection against cross-flow and contaminants. With a temperature adjustment range of 30°C to 50°C and a precise control of +/- 2°C, it delivers a stable mixed water temperature, reducing the risk of scalding. Compliant with both NHS Estate DO8 and BS4942:2000 standards, this TMV is a dependable choice for projects where reliability and safety are paramount.
Design Features
- Comprehensive Design: Integrates a 4-in-1 design with non-return valves, test points, and strainers.
- Certified Safety: WRAS, BuildCert, TMV2, and TMV3 approved for your assurance.
- Standard Compliance: Complies with strict industry standards including NHS Estate DO8 and BS4942 : 2000.
Specification
- Temperature Adjustment Range: 30°C to 50°C
- Temperature Control: +/- 2°C
- Minimum Hot Inlet Temperature: 85°C
- Operating Pressure (Low): 0.2 to 1.0 Bar
- Operating Pressure (High): 1.0 to 5.0 Bar
- Maximum Working Pressure: 10 Bar static
- Minimum Working Pressure: 0.2 Bar dynamic
- Maximum Pressure Differential: Low 0.4 Bar, high 2.0 Bar
- Flow Rate Under 1 Bar Pressure Differential: 15mm Ø 1700 L/Hr, 22mm Ø 1900 L/Hr
- Minimum Temperature Differential (Mix To Hot) For Fail Safe: 10°C
