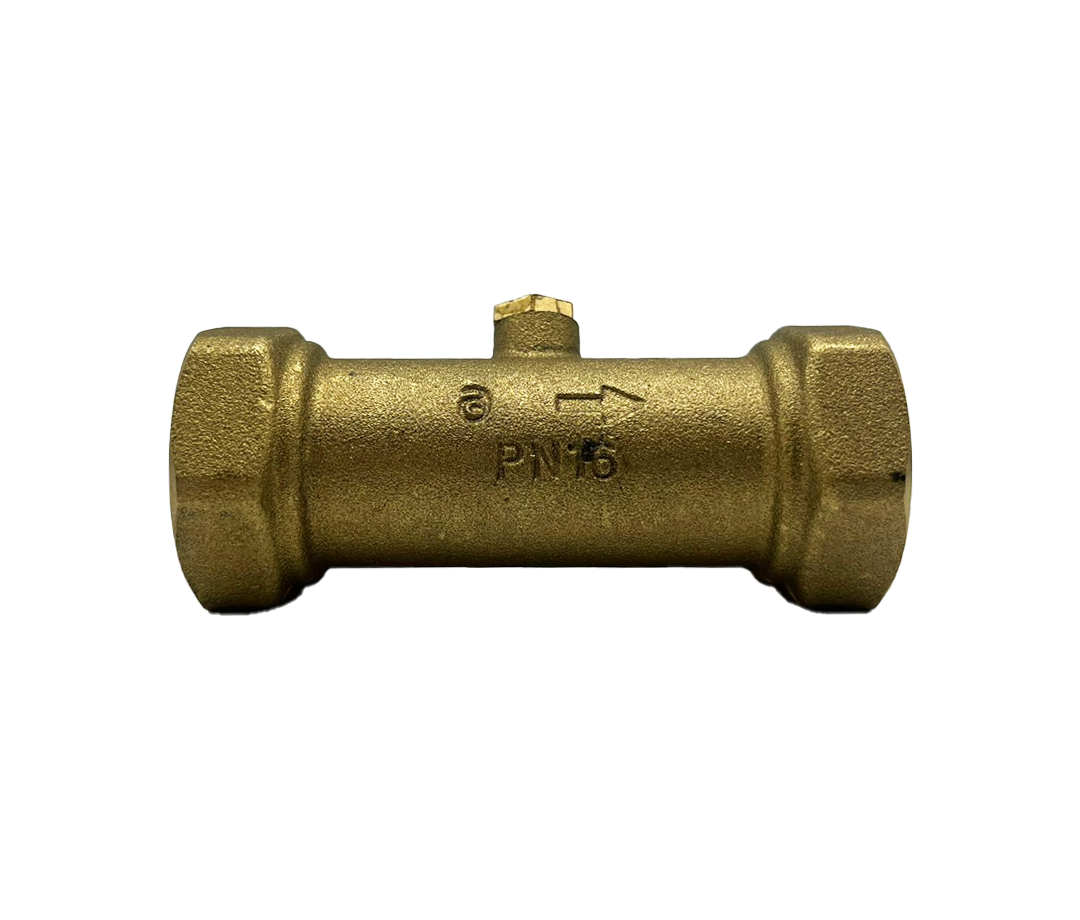

VIP BSP DZR Double Check Valve
Key Information
The VIP BSP DZR Double Check Valve is designed to prevent the backflow and back siphonage of water, helping to protect potable water supplies from contamination in domestic and commercial plumbing systems. Manufactured from durable DZR brass, the valve incorporates dual check cartridges to provide Category 3 backflow protection in accordance with the Water Supply (Water Fittings) Regulations 1999. Its compact, lightweight design, female BSP threaded connections and low pressure loss make it an ideal solution for a wide range of water distribution applications.
Features
- Category 3 Backflow Protection – Helps prevent backflow and back siphonage in accordance with the Water Supply (Water Fittings) Regulations 1999.
- DZR Brass Construction – Manufactured from dezincification-resistant brass for long-term durability and corrosion resistance.
- Female BSP Threaded Connections – BSP screwed female ends for straightforward installation into threaded pipework.
- High Flow, Low Pressure Loss – Designed to provide excellent flow characteristics with minimal pressure drop.
- BS EN 13959 Compliant – Manufactured in accordance with BS EN 13959 for double check valves.
- 16 Bar Pressure Rating – Suitable for operating pressures up to 16 bar with a maximum operating temperature of 85°C.
| VIP Code | Size |
|---|---|
| 02/0013/015 | 1/2″ |
| 02/0013/020 | 3/4″ |
| 02/0013/025 | 1″ |
| 02/0013/032 | 1 1/4″ |
| 02/0013/040/050 | 1 1/2″ |
| 02/0013/050 | 2″ |
02/0013 Datasheet (VIP DZR Double Check Valve)
Download
