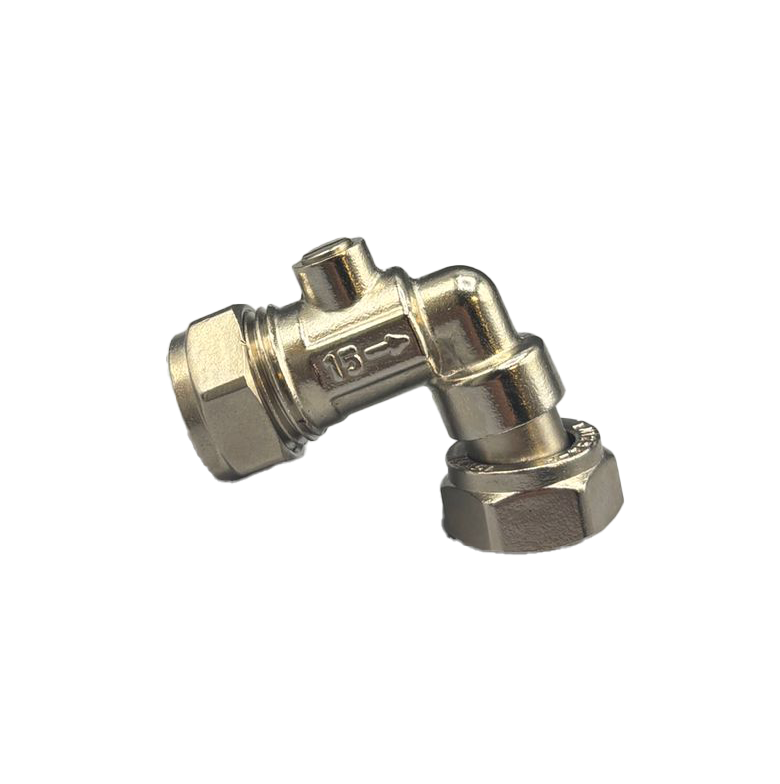

VIP Chrome Plated Bent Service Valve, Compression x 1/2 Female Swivel
Key Information
The VIP Chrome Plated Bent Service Valve, Compression x 1/2″ Female Swivel provides a convenient means of isolating water supplies to taps, toilets, mixers and other sanitary appliances where an angled connection is required. Manufactured from durable brass with a chrome plated finish, the valve features a compression inlet and a 1/2″ female swivel outlet for quick and straightforward installation. Its compact 90° design and smooth quarter-turn operation make it ideal for neat installations in confined spaces while allowing individual fixtures to be serviced without interrupting the main water supply.
Features
- Compression x 1/2″ Female Swivel Connections – Compression inlet compliant with EN 1254-2 and female swivel outlet with ISO 228 threads.
- Bent Service Valve Design – 90° configuration provides a compact solution where pipework changes direction.
- Quarter-Turn Isolation – Enables fast, simple and reliable shut-off for servicing and maintenance.
- Chrome Plated Brass Construction – Durable brass body with an attractive chrome finish for exposed installations.
- BS 6675 Compliant – Manufactured in accordance with BS 6675 for dependable performance.
- PN10 Pressure Rating – Suitable for operating pressures up to 10 bar, with an operating temperature range of -10°C to 85°C.
| VIP Code | Size |
|---|---|
| 02/0082/015 | 15mm x 1/2″ Female Swivel |
Residential Property
Healthcare
