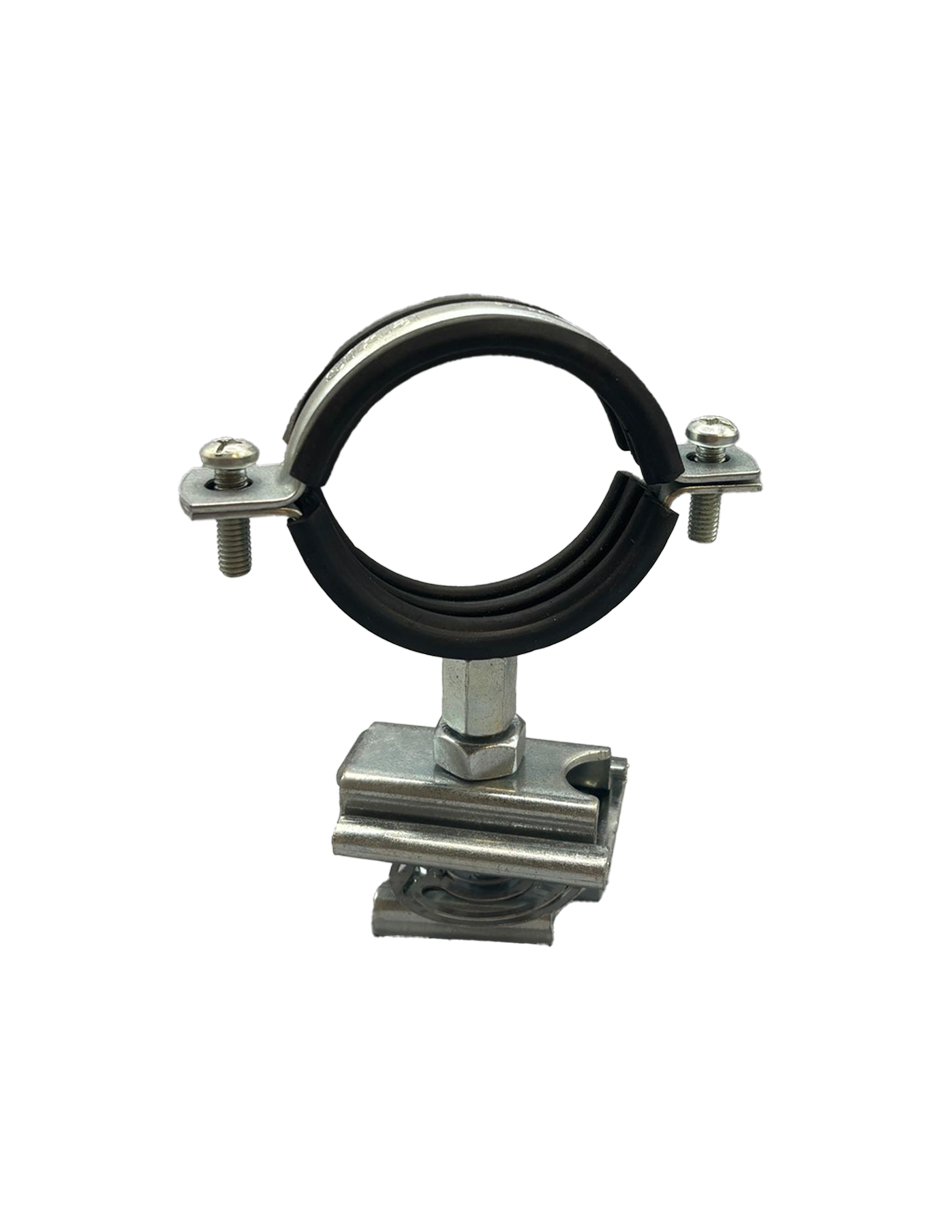

VIP Light Pattern GSG1 Slider Guides For Copper Pipes (inc Pipe Clamps)

33/0658C

VIP Light Pattern GSG1 Slider Guides For Copper Pipes (inc Pipe Clamps)

1 kg

Price range: £4.90 through £5.44

Slide Set for mounting of small pipe lines with possible elongation of length. Light Pattern GSG1 Slider Guides are space-saving and thus can also to be used for smaller centre distances. The stop on the skid avoids the pipe line from over sliding and at the same time is a comfortable guide for riser pipes.

Technical Data

• Permissible load for ceiling mounting: 0.6 kN
• Permissible load for floor mounting: 1.2 kN
• Lever arm Lmax: 75mm
• Permissible bending moment for wall mounting: 20 Nm
• Maximum sliding distance: 45mm
• Static friction coefficient μ0: 0.15
• Sliding friction coefficient μ: 0.13
• Type: 1G
• Thread connection: M10

Note: Prices above are excluding VAT.
For delivery times and further info please call our team 01942 885700 or email us.
Other sizes or types may be available upon request. We can source special items to your requirements – please contact us for details

Speak to one of our valve experts today!

speak to our team
Specification Details
Body Electro-galvanised Steel
Back to VIP Pipe Guides
