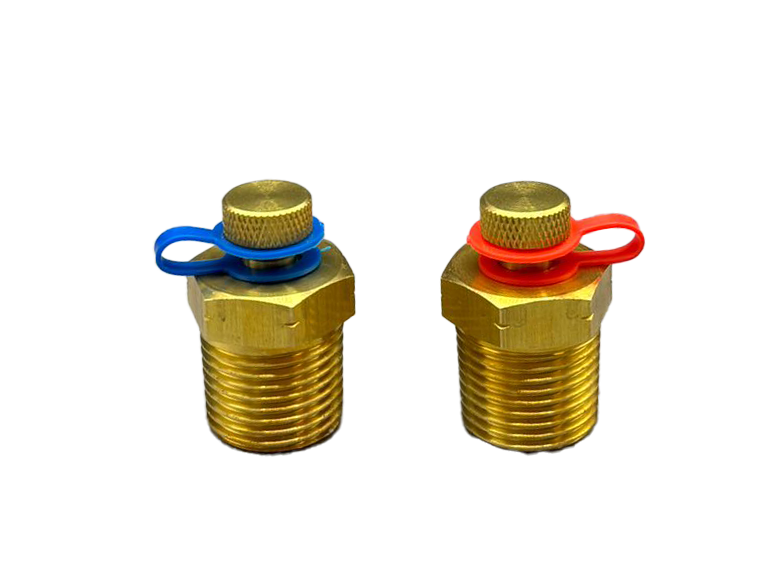

VIP Standard BSPT Brass Test Plug
Test Plugs
Brass Test Points provide a convenient and reliable means of monitoring system conditions within heating, cooling and hydronic pipework. Manufactured with a durable brass body and a dual-core EPDM sealing element, they allow pressure and temperature measurements to be taken quickly while maintaining a secure, leak-tight seal when not in use. Available with colour-coded identification caps, these test points are designed for dependable long-term performance in commercial and industrial systems.
Features
- Brass Construction – Durable brass body provides long service life and excellent corrosion resistance.
- Dual-Core EPDM Seal – Nordel dual-core sealing design ensures reliable, leak-tight performance.
- High Pressure Rating – Suitable for operating pressures up to 1000 PSI.
- Wide Temperature Range – Designed for operating temperatures from -20°C to 120°C.
| VIP Part Code | Size | Tag Colour |
|---|---|---|
| 00/1094/008/B | 1/4″ | Blue |
| 00/1094/008/R | 1/4″ | Red |
| 00/1094/015/B | 1/2″ | Blue |
| 00/1094/015/R | 1/2″ | Red |
00/1094 Datasheet (BSPT Brass Test Points)
Download
