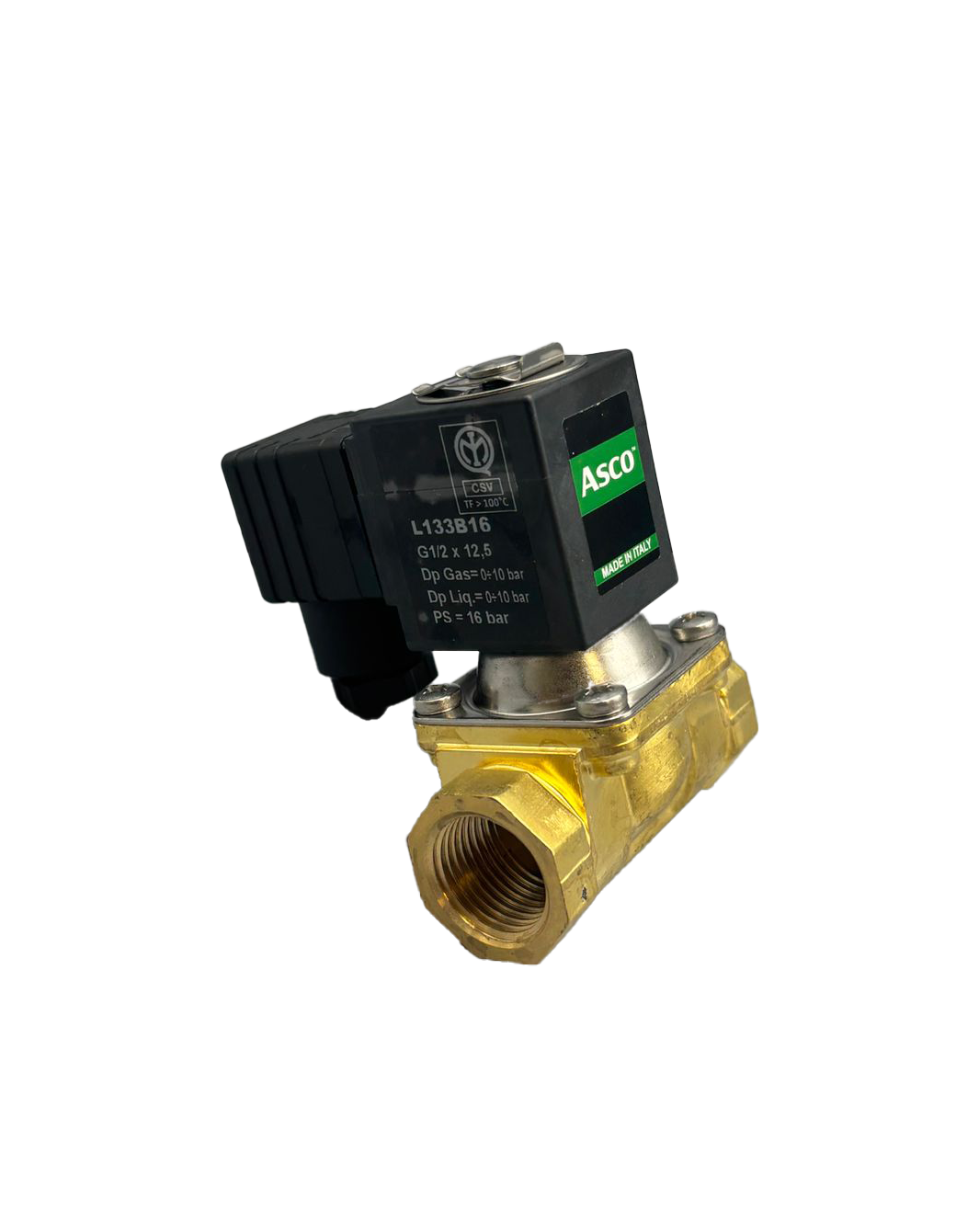

VIP Type L133 - Zero Rated (D/A) A.O.G.W Range 0 - 115 PSI (90c) Normally Closed - Energize To Open (NCEO), 240v

35/0386

VIP BSP Direct Acting Brass Solenoid Valve 230V, NCEO

1 kg

Price range: £68.88 through £139.59

VIP BSP Direct Acting Brass Solenoid Valve 230V, NCEO

Key Information

The VIP BSP Direct Acting Solenoid Valve provides automatic shut-off of compatible liquids and gases, with a mechanically linked diaphragm that allows operation at zero pressure differential. Suitable for closed-circuit systems and vessel draining, the valve opens when energised and closes when power is removed. Featuring a brass body and NBR sealing, the range is designed for continuous duty with a 230V, 50Hz supply and accommodates fluid temperatures from −10°C to +90°C. Supplied with MPM plugs.

Specification

  • Operation: 2/2-way, normally closed, pilot operated
  • Supply voltage: 230V, 50Hz (+10% / −15%)
  • Duty rating: 100% continuous
  • Fluid temperature range: -10°C to +90°C
  • Max. Allowable Pressure: 16 Bar
  • Max. Viscosity: 5°E (approx. 37 cSt)
  • Supplied with MPM Plugs

Note: Prices above are excluding VAT.
For delivery times and further info please call our team 01942 885700 or email us.
Other sizes or types may be available upon request. We can source special items to your requirements – please contact us for details

Speak to one of our valve experts today!

speak to our team
Specification Details
Operation 2/2-Way, Normally Closed, Pilot Operated
Connections BSP Female x BSP Female
Connection Standard ISO 228-1
Maximum Pressure (Bar) 16.0
Maximum Temperature (°C) 90
Opening Time ~100ms - ~150ms
Closing Time ~100ms - ~400ms
Maximum Viscosity 5°E (approx. 37 cSt)
Body Brass
Seat Stainless Steel
Back to VIP Solenoid Valves
