VIP 'Warrior' Flushing Manifolds
Simplify isolation, flushing and maintenance of HVAC terminal units. Available with 40mm or 80mm centres, configured to your project.
Assembled to your requirements, individually pressure tested and tagged to your schedule.
BUILT FOR EASIER MAINTENANCE
Isolate the unit. Keep maintenance simple.
An integrated bypass provides an alternative route for system water, allowing the terminal unit to be isolated and serviced without draining the entire system.
- Three integral isolating valves
- Fewer joints to reduce potential leak points
- Four union ends for flexible configuration
Two flow paths. Simple Isolation.

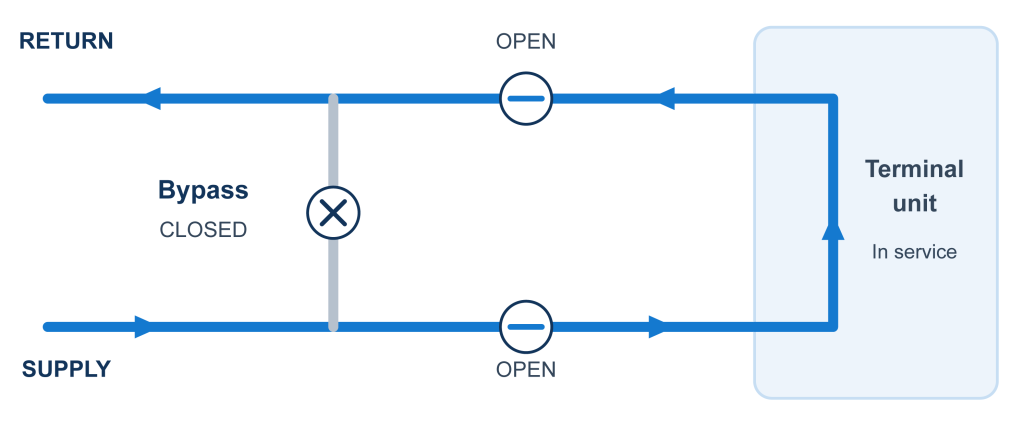

Normal operation
Water flows through the terminal unit and back into the system.
The bypass remains closed.

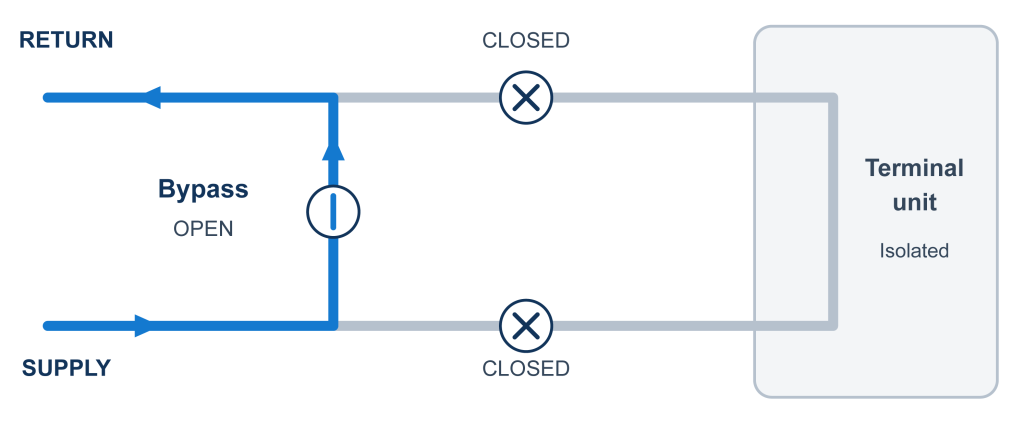

Isolated for maintenance
The bypass redirects water while the terminal unit is isolated.
The unit can then be drained and disconnected for maintenance.
From Schematic to Finished Assembly
A schematic drawing may start as a collection of lines, symbols and valve references but at VIP, we can help turn that design into a complete, project-ready assembly.
Starting with the original schematic, the video transitions into the finished flushing bypass manifold, showing how the individual components specified within the design can be brought together into one complete solution.
Union Sizes Available

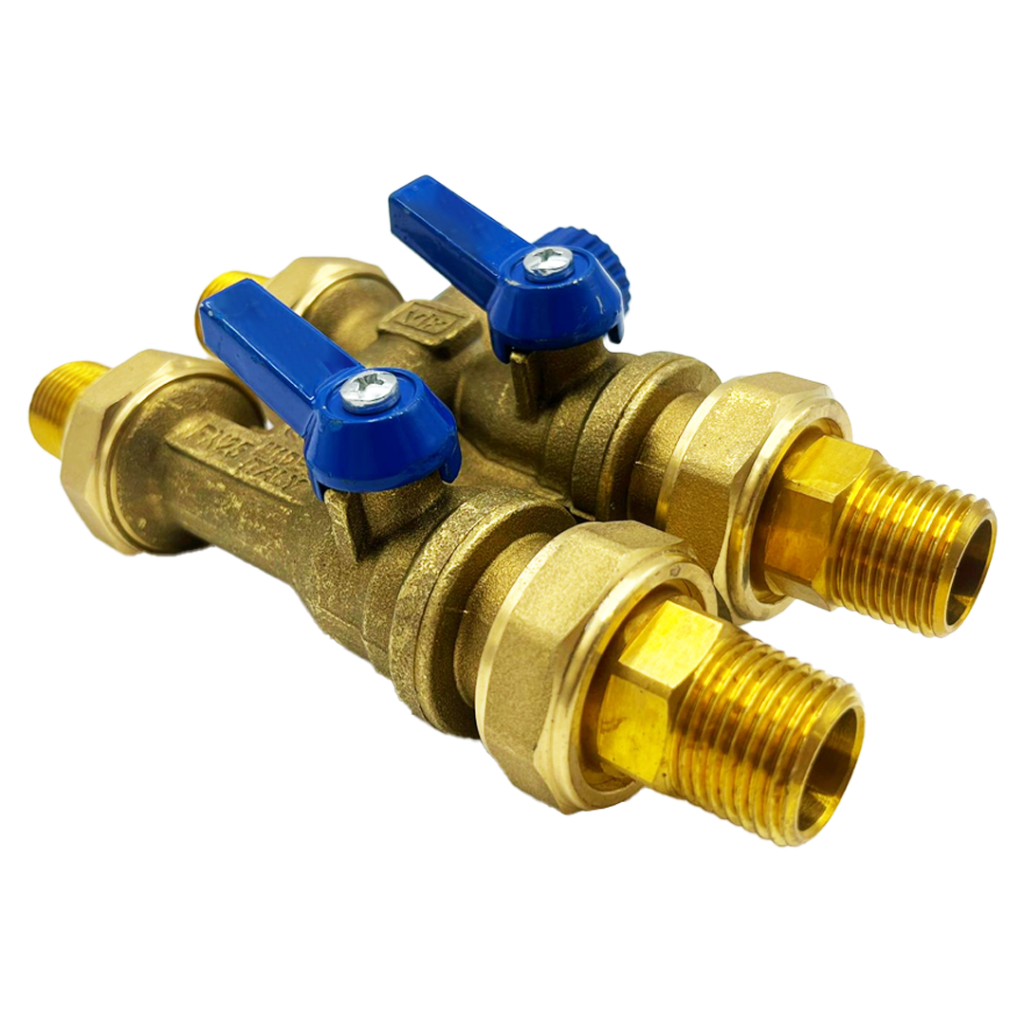

40mm
centres
½"
¾"
80mm
centres
½"
¾"
1"
*40mm manifold: ¾” BSP unions available with male ends only
More than components. A complete assembly service.
One of the key benefits of this service is simplicity.
Instead of sourcing numerous individual valves and components separately, customers can work with VIP to create a complete assembly based around their specified layout.
Our team can help interpret the schematic, identify the required valve arrangement and provide the components needed to create the finished manifold.
Helping Make Installation Easier
Providing valves as a pre-configured assembly can also help reduce the amount of work required on site. Rather than installers having to assemble several individual components from scratch, the required valve arrangement can be prepared in advance, helping to:
- Ensure the finished arrangement reflects the original schematic
- Reduce the number of separate components arriving on site
- Reduce installation time
- Simplify procurement
- Improve consistency across multiple units
Your specification. Your configuration.
Build an assembly around your project requirements.
Every mechanical services project can have different requirements, which is why a standard, off-the-shelf valve arrangement is not always suitable.
At Valves Instruments Plus, customers can send us their schematic or valve arrangement and our team can work from the drawing to produce a bespoke flushing bypass manifold to suit the application.
The result is a manifold configured around the requirements of the system rather than the customer having to adapt their design around a standard product.

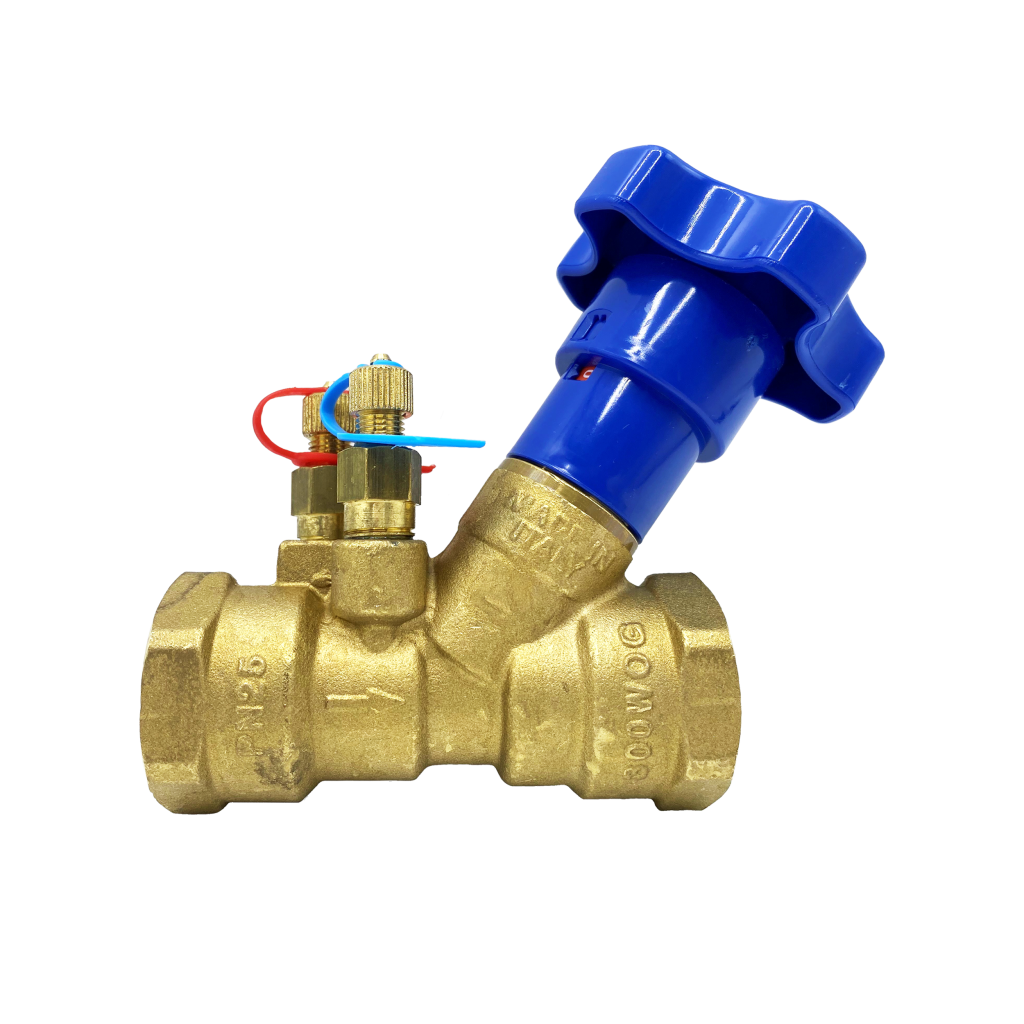

Commissioning Valves

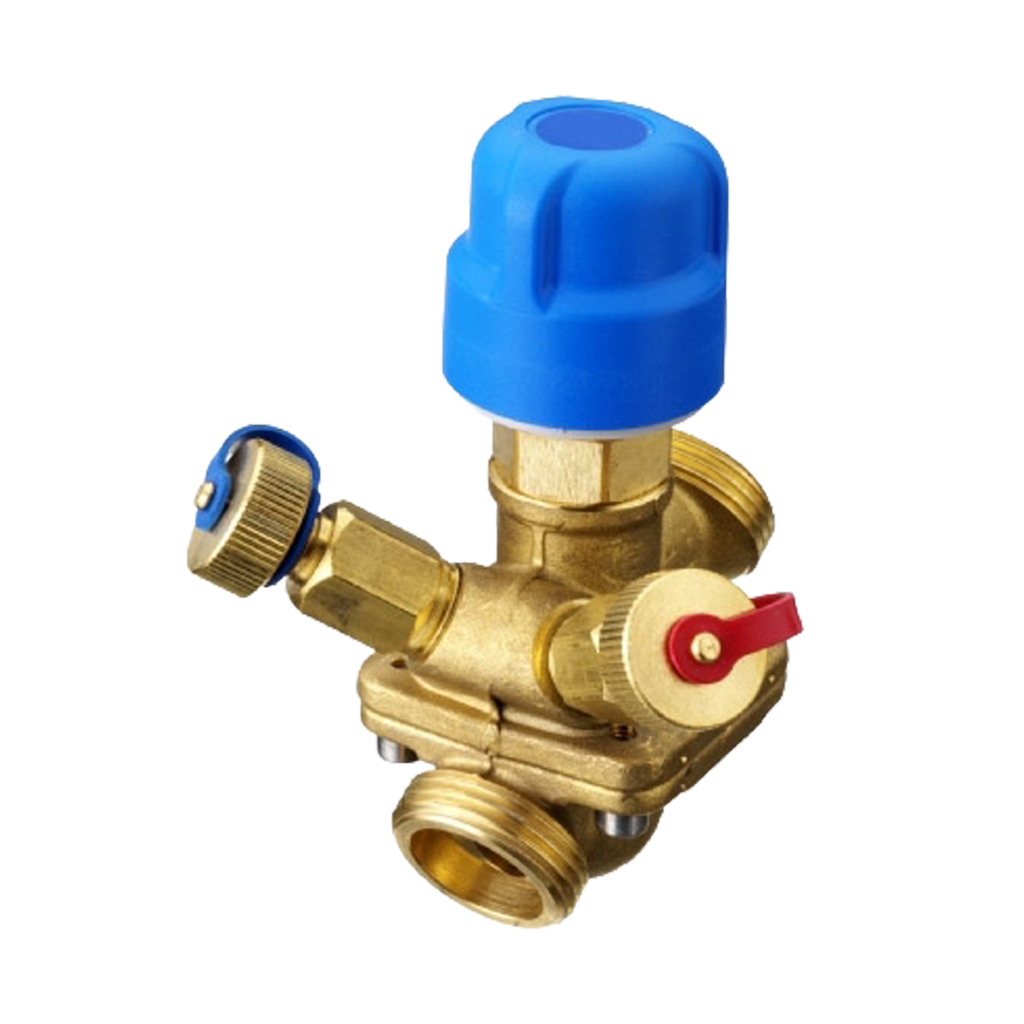

Danfoss
PICVs

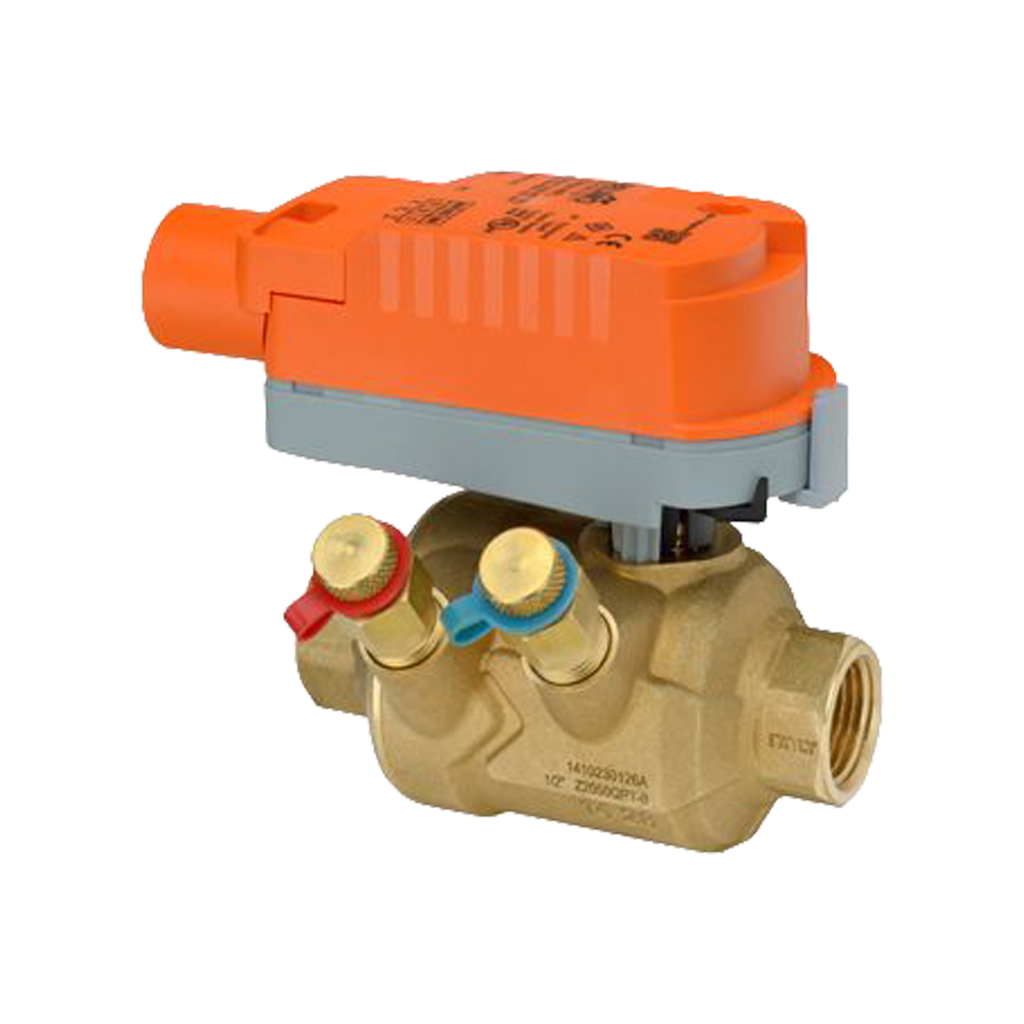

Belimo
PICVs

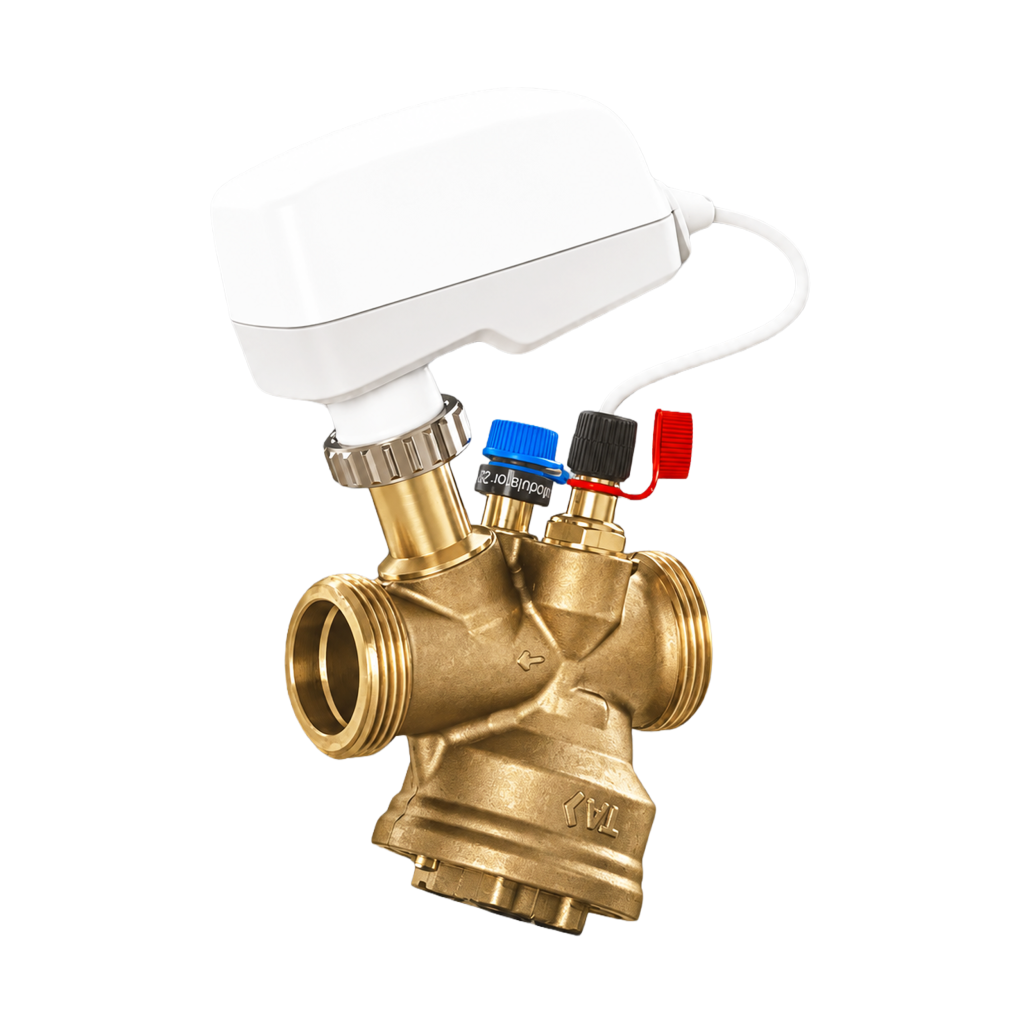

IMI
PICVs

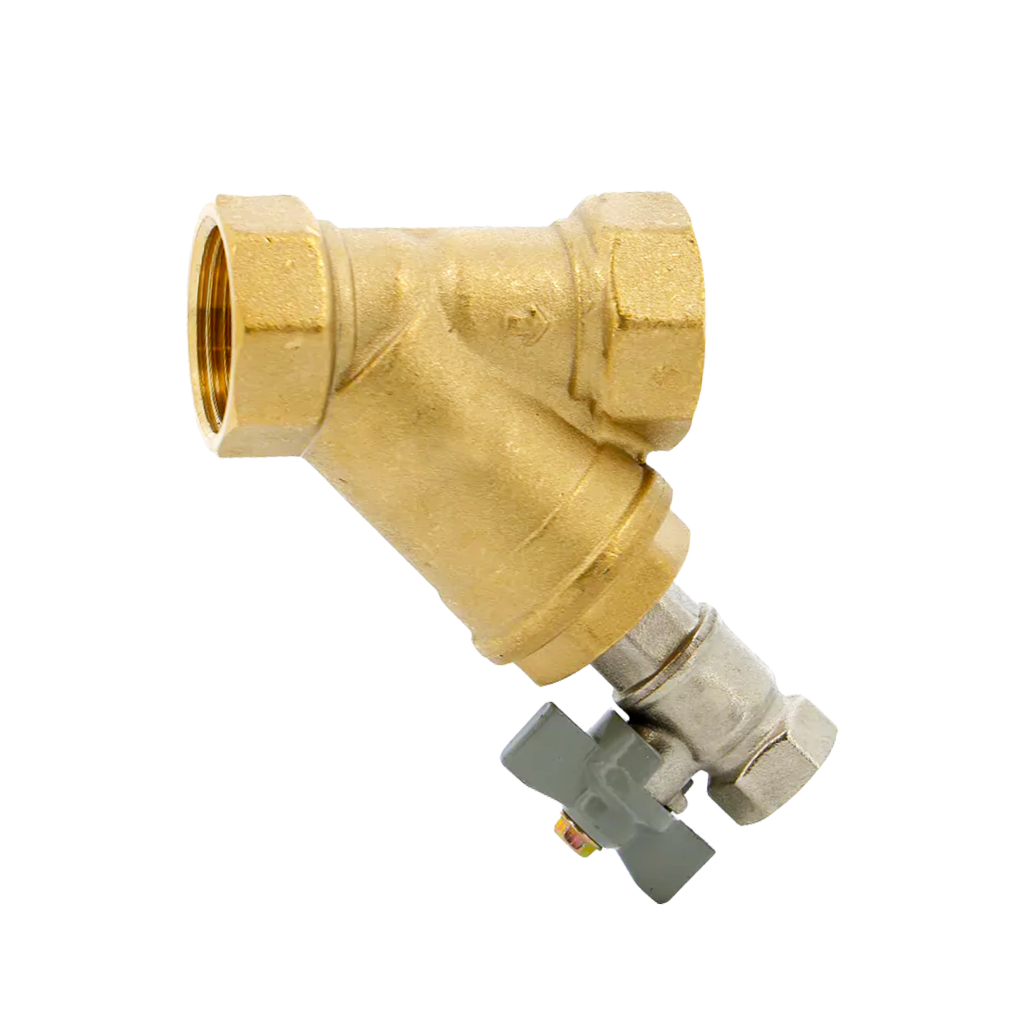

Strainers &
Drains

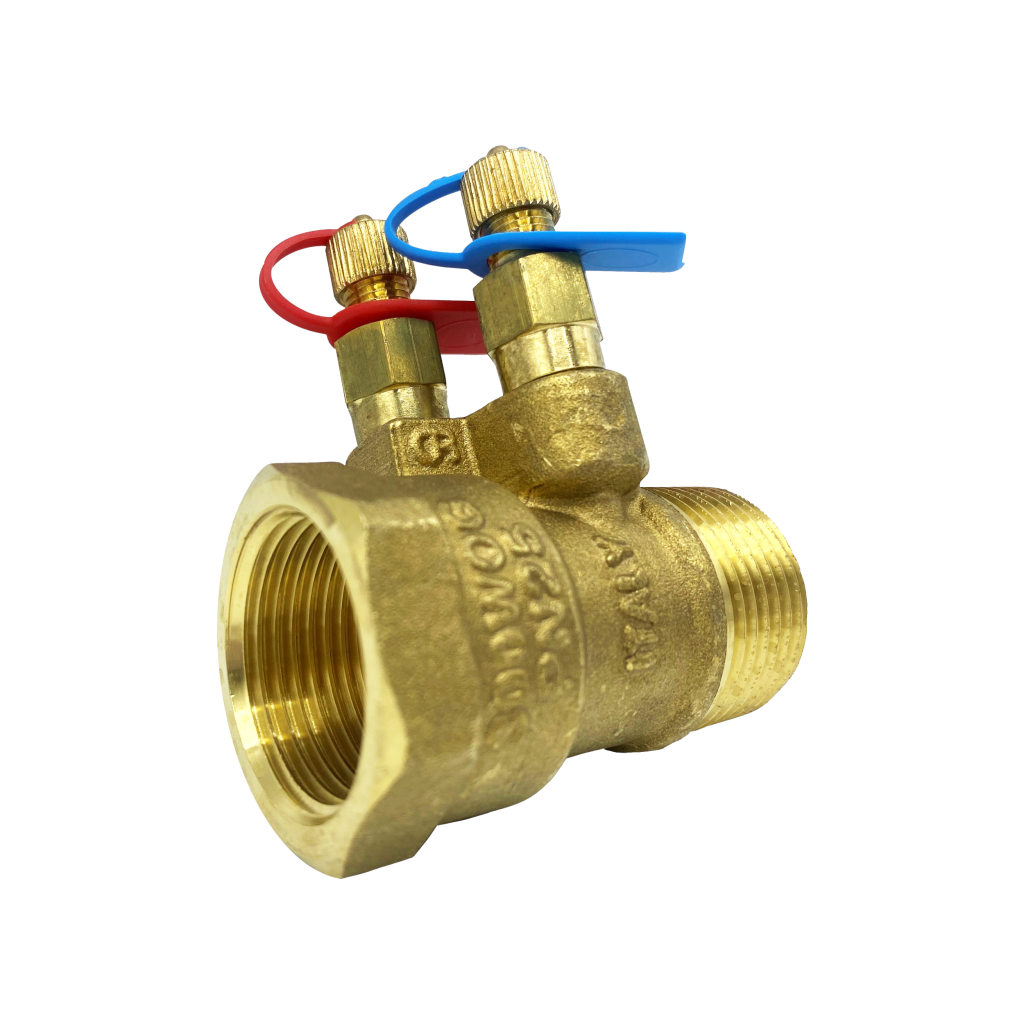

Metering
Stations

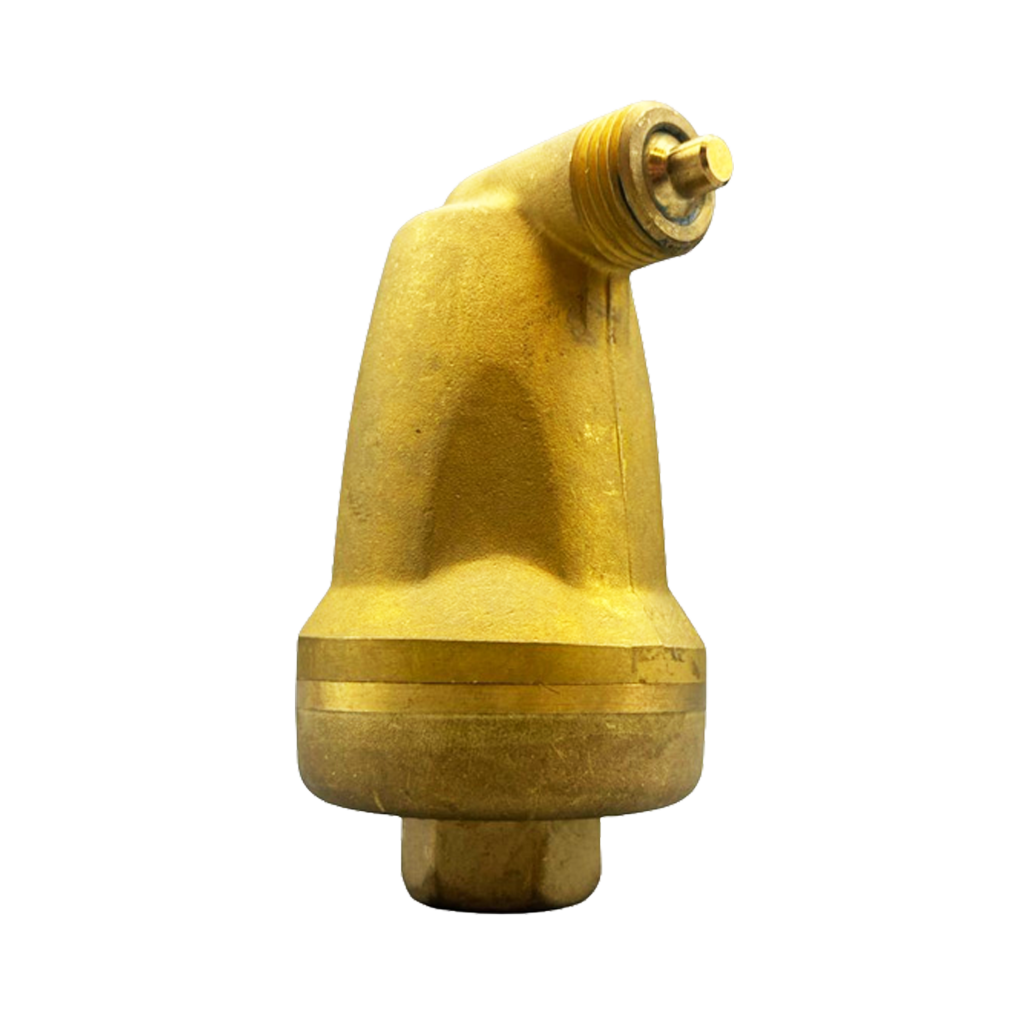

Air
Vents
Case Studies
Check out our manifolds in action..
Manchester City Football Academy, Etihad Campus
VIP supplied 500+ tested PICV manifold units and specialist plantroom equipment for Manchester City’s prestigious Etihad Campus UK.
MediaCityUK
Being close to our Manchester home, VIP have supplied lots of products in many of the projects in the regenerated area over the years…
More Than A Valve Supplier
Our Value Is Paramount philosophy means looking at how we can add value throughout the entire process — from product selection and technical support to assembly, stock availability and delivery.
By taking a customer’s schematic and helping turn it into a finished valve arrangement, we can help make the procurement and installation process simpler while providing a solution tailored to the project.
Send Us Your Schematic
If you have a flushing bypass manifold, terminal unit valve arrangement or bespoke valve assembly requirement, send your schematic to our team.
We can review the drawing, discuss the requirements and help turn your design into a finished solution.
Built around your project.
From individual components to complete assemblies, each unit is configured to your requirements, individually pressure tested and tagged to your schedule.
Examples shown below. Final configurations depend on your project specification.
