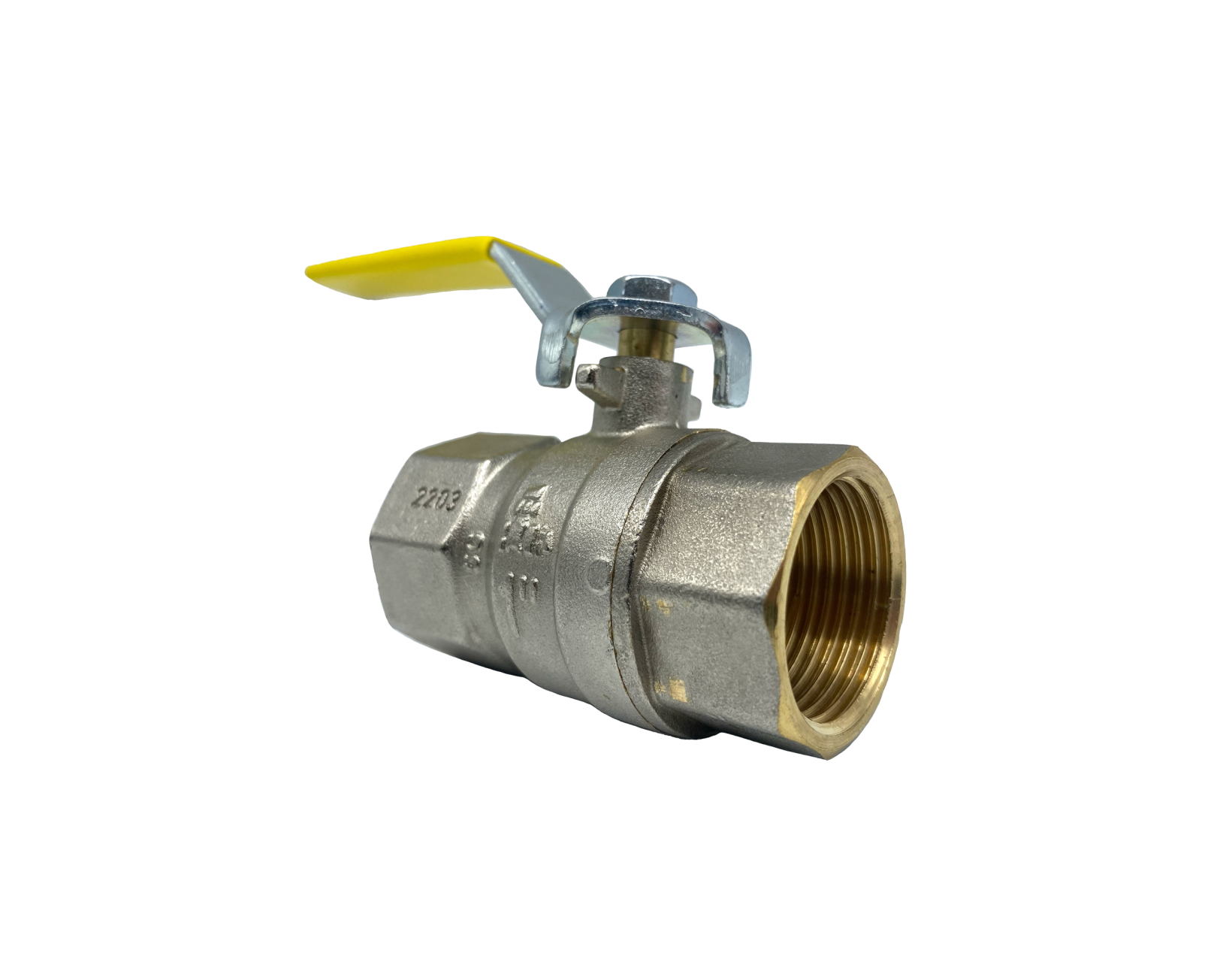

VIP Full Bore Brass Nickel Plated Ball Valve with Chrome Plated Brass Ball, PTFE seats, BSP Female Ends

VIP Full Bore Brass Nickel Plated Ball Valve with Chrome Plated Brass Ball, PTFE seats, BSP Female Ends

Key Information

The VIP full bore brass nickel plated gas ball valve is designed to provide reliable and efficient isolation in gas distribution and pipeline systems. Manufactured in accordance with EN331 standards, the valve is specifically engineered for gas service applications, delivering dependable performance and long-term durability.

Constructed from high-quality nickel plated CW617N brass, the valve offers excellent resistance to corrosion and wear, while the chrome plated brass ball ensures smooth operation and reliable sealing performance. The full bore design allows unrestricted flow through the valve, minimising pressure drop and maintaining maximum flow efficiency within the system.

Fitted with PTFE seats, the valve provides dependable sealing and low operating torque for smooth manual operation. The plastified yellow steel lever handle allows for clear identification in gas installations and provides secure quarter-turn isolation control.

Designed with BSP female threaded ends to ISO 7/1 Rp standards, the valve enables quick and straightforward installation into threaded pipe systems. Rated for gas applications up to 5 bar pressure and operating temperatures from -20°C to 60°C, the valve is intended for use in fully open or fully closed positions only.

With its robust brass construction, full bore flow path, and EN331 gas approval, this gas ball valve provides a dependable and cost-effective solution for commercial and industrial gas systems.
