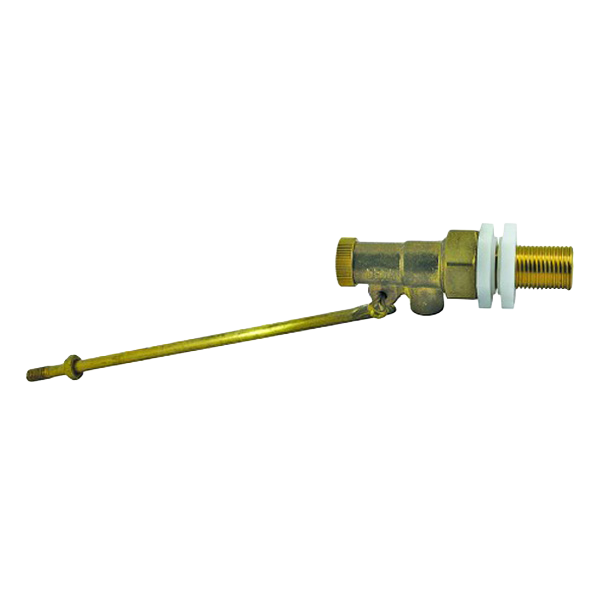

VIP Part 1 HP Portsmouth Pattern Float Valve
Key Information
The VIP Part 1 HP Portsmouth Pattern Float Valve is a brass, side-inlet ball float valve for controlling water levels in tanks and cisterns. This high-pressure float valve features a BS 1212 Part 1 side inlet and a male BSP inlet thread to ISO 228, with a maximum working pressure of 14 bar and a maximum temperature of 85°C.
Specification
- WRAS Approved for 1/2″ and 3/4″ only. 1″ – 2″ are not WRAS aproved.
- BSP Male Thread Connection to ISO 228
- Side inlet to BS1212 Part 1
- Maximum Pressure: 14 Bar
- Maximum Temperature: 85°C
- Floats supplied separately.
| VIP Code | Size | Float Connection | Recommended Float Size |
|---|---|---|---|
| 10/0391/015 | 1/2″ | 5/16 BSW | 4″ Diameter |
| 10/0391/020 | 3/4″ | 5/16 BSW | 6″ Diameter |
| 10/0391/025 | 1″ | 7/16 BSW | 8″ Diameter |
| 10/0391/032 | 1 1/4″ | 9/16 BSW | 10″ Diameter |
| 10/0391/040 | 1 1/2″ | 9/16 BSW | 10″ Diameter |
| 10/0391/050 | 2″ | 5/8 BSW | 12″ Diameter |
