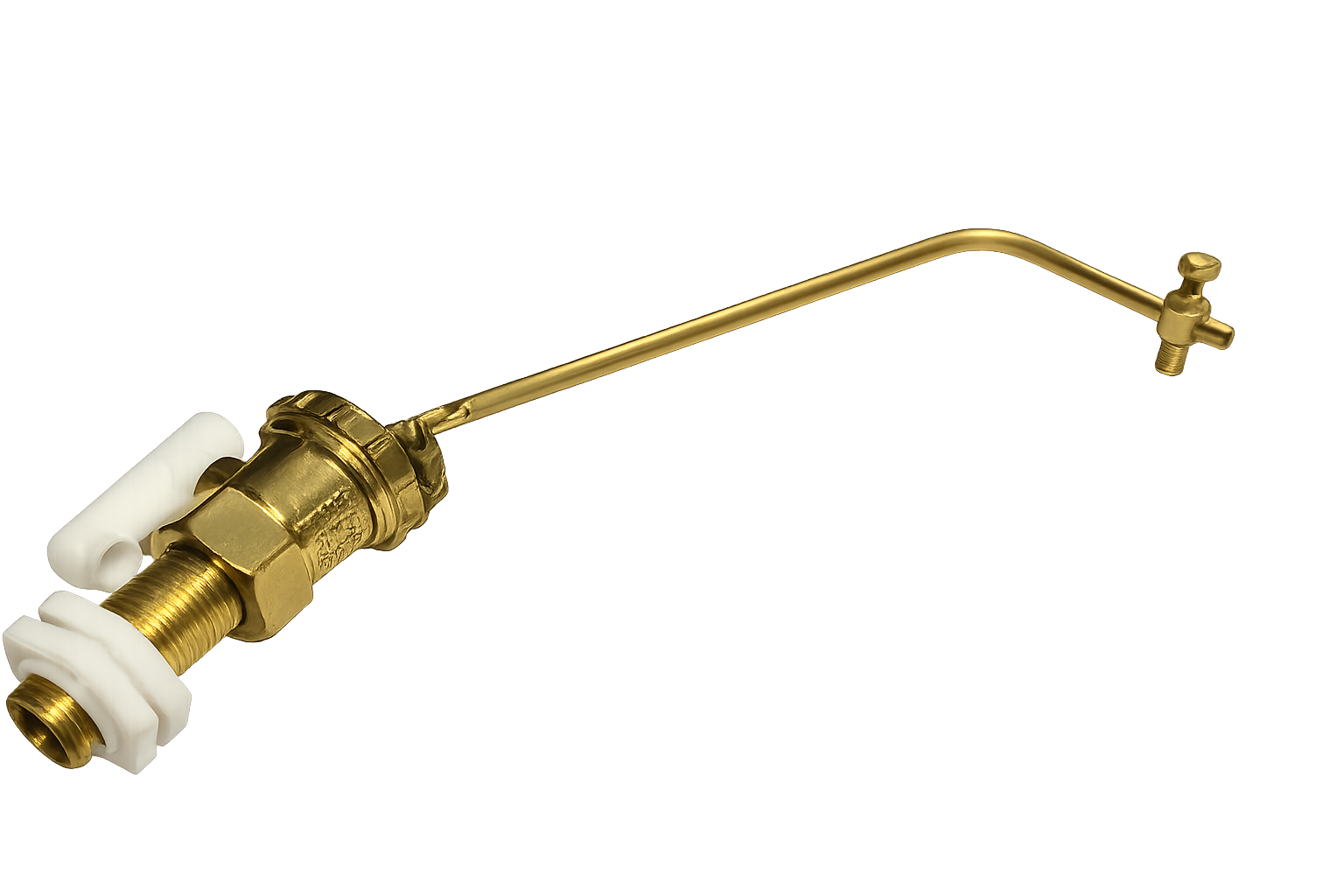

VIP Part 2 Diaphragm Pattern Float Valves
Key Information
The VIP Part 2 Diaphragm Pattern Float Valve is a brass, side-inlet ball float valve for controlling water levels in tanks and cisterns. This WRAS-approved, high-pressure float valve features a diaphragm pattern design and a BS 1212 Part 2 side inlet.
With a male BSP inlet thread to ISO 228, the valve is rated for a maximum working pressure of 20 bar and a maximum temperature of 60°C.
Specification
- BSP Male Thread Connection to ISO 228
- Side inlet to BS1212 Part 2
- Maximum Pressure: 20 Bar
- Maximum Temperature: 60°C
- Floats supplied separately.
| VIP Code | Size | Float Connection | Recommended Float Size |
|---|---|---|---|
| 10/0393/015 | 1/2″ | 5/16 BSW | 4″ Diameter |
| 10/0393/020 | 3/4″ | 5/16 BSW | 6″ Diameter |
Note: Prices above are excluding VAT.
For delivery times and further info please call our team 01942 885700 or email us.
Other sizes or types may be available upon request. We can source special items to your requirements – please contact us for details
