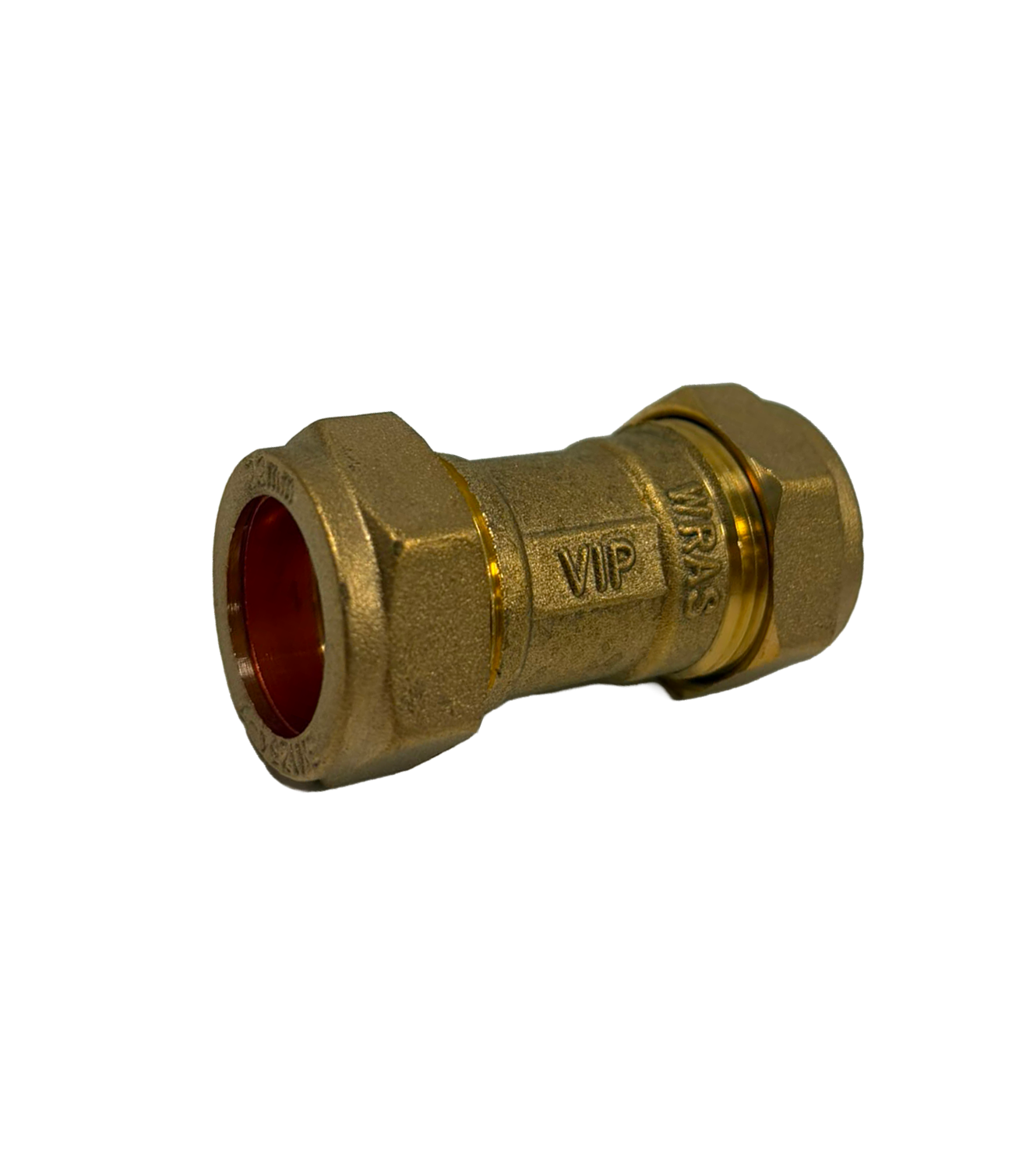

VIP Spring Loaded Compression Ended Single Check Valve
Key Information
The VIP Spring Loaded Compression Ended Single Check Valve is designed to prevent the backflow and back siphonage of water, helping to protect potable water supplies in domestic and commercial plumbing systems. Manufactured from durable brass, the valve incorporates a spring-loaded check mechanism that provides rapid closure to prevent flow reversal while maintaining excellent flow characteristics with minimal pressure loss. Featuring compression end connections for quick installation, its compact design makes it an ideal solution for a wide range of hot and cold water applications.
Features
- Category 2 Backflow Protection – Helps prevent backflow and back siphonage in accordance with the Water Supply (Water Fittings) Regulations 1999.
- Spring Loaded Check Mechanism – Provides rapid closure to minimise flow reversal and improve system protection.
- Compression End Connections – Enables quick and straightforward installation onto compatible copper pipework.
- Brass Construction – Manufactured from high-quality brass for excellent durability and long service life.
- BS EN 13959 Compliant – Manufactured in accordance with BS EN 13959 for single check valves.
- Compact, High Flow Design – Lightweight construction delivers good flow rates with minimal pressure loss while operating at pressures up to 10 bar and temperatures up to 85°C.
| VIP Code | Size |
|---|---|
| 02/0014/015 | 15mm |
| 02/0014/015/CP | 15mm Chrome Plated |
| 02/0014/022 | 22mm |
| 02/0014/028 | 28mm |
02/0014 Datasheet (Brass Single Check Valve, Compression Ends)
Download
