VIP Bronze Variable Orifice Balancing Valve, Complete with Test Points
Key Information
- Tolerance on nominal Kv for completely open valve ±5%
- With plugged threaded drains (1/4” ISO 7/1Rp) for test points
- Provided with test points (supplied loose)
| Kv Values | |||||||
|---|---|---|---|---|---|---|---|
| Ring | 00/0121/065 | 00/0121/080 | 00/0121/100 | 00/0121/125 | 00/0121/150 | 00/0121/200 | 00/0121/250 |
| DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | |
| 0.5 | 5.25 | 5.62 | 6.75 | 12.53 | 13.95 | 16.95 | 25.56 |
| 1 | 6.6 | 7.1 | 9.59 | 18.1 | 20.92 | 23.99 | 38.35 |
| 1.5 | 7.27 | 11.35 | 13.06 | 18.65 | 40.8 | 26.56 | 46.39 |
| 2 | 7.52 | 15.9 | 16.23 | 22.66 | 61.63 | 27.73 | 70.5 |
| 2.5 | 8.74 | 19.48 | 21.53 | 37.93 | 78.3 | 64.89 | 92.96 |
| 3 | 10.92 | 20.85 | 31.51 | 49.94 | 93.27 | 103.45 | 118.13 |
| 3.5 | 12.52 | 21.54 | 43.33 | 61.56 | 115.67 | 142.84 | 137.86 |
| 4 | 16.81 | 35.64 | 59.78 | 98.05 | 176.22 | 180.7 | 140.78 |
| 4.5 | 27.99 | 56.39 | 88.91 | 138.35 | 229.09 | 235.18 | 155.16 |
| 5 | 41.13 | 71.26 | 102.2 | 157.86 | 264.37 | 302.83 | 218.04 |
| 5.5 | 48.27 | 82.26 | 118.78 | 171.53 | 295.9 | 349.95 | 305.13 |
| 6 | 53.53 | 93.14 | 135.45 | 201.14 | 321.68 | 398.94 | 367.7 |
| 6.5 | 54.21 | 101.89 | 150.46 | 229.62 | 339.38 | 451.81 | 412.42 |
| 7 | 59.66 | 107.92 | 164.24 | 246.41 | 359.75 | 504.36 | 470.32 |
| 7.5 | 64.88 | 178.1 | 379.97 | 547.39 | 530.14 | ||
| 8 | 70.65 | 188.06 | 407.04 | 561.53 | 601.35 | ||
| 8.5 | 590.88 | 669.96 | |||||
| 9 | 632.76 | 725.97 | |||||
| 9.5 | 663.03 | 795.4 | |||||
| 10 | 690.38 | 843.75 | |||||
| 10.5 | 897.44 | ||||||
| 11 | 948.39 | ||||||
| 11.5 | 1004.88 | ||||||
| 12 | 1056.54 | ||||||

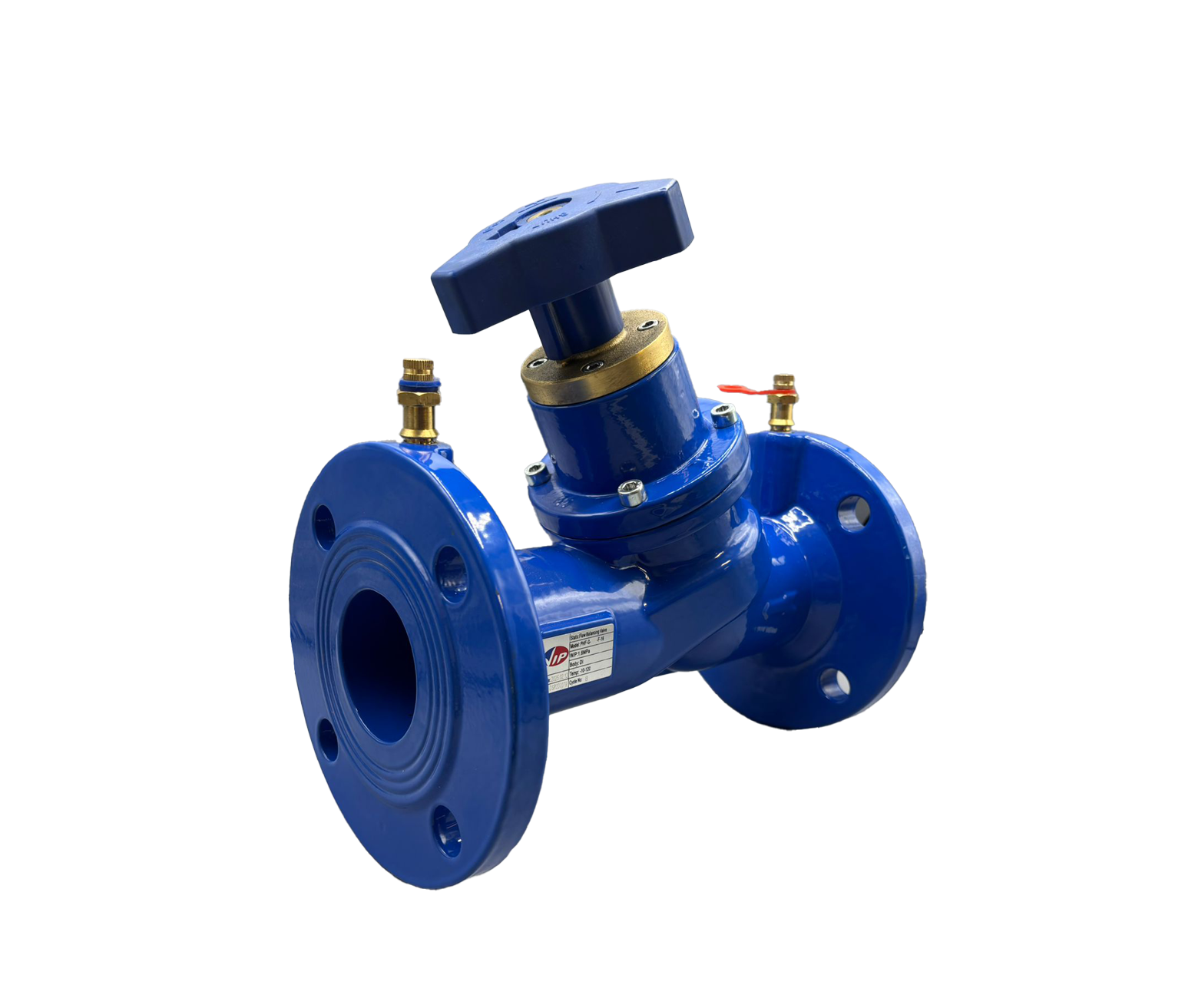

VIP Cast Iron Double Regulating Valve Flanged PN16
The VIP cast iron double regulating valve is designed for water flow regulation and system balancing in commercial heating, cooling and building services installations. With a robust cast iron body and PN16 flanged connections, this valve helps engineers control water flow and balance circuits to meet system design requirements.
Key Features and Benefits
- Cast iron construction: Designed for suitable commercial water system applications.
- Double regulating function: Supports flow adjustment and balancing within water circulation systems.
- PN16 pressure rating: Suitable for compatible systems operating within the specified pressure limits.
- Flanged connections: Designed for installation in compatible pipeline systems.
- Heating and cooling applications: Suitable for appropriate building services and HVAC installations.
- Multiple sizes available: Check the available nominal diameters to select the right valve for your system.
Applications of a Cast Iron Double Regulating Valve
A cast iron double regulating valve is commonly used in heating, ventilation and air conditioning (HVAC) systems to help regulate water flow through individual circuits. Correct balancing helps distribute water according to system design requirements and can support consistent performance across the installation.
Double regulating valves are used during commissioning and maintenance to adjust flow and help maintain the intended hydraulic balance. They are suitable for consideration in commercial heating and cooling systems where reliable flow regulation is required.
Choosing the Right Double Regulating Valve
When selecting a VIP cast iron double regulating valve, consider the required pipe size, design flow rate, operating pressure and water temperature. Confirm the flange standard and the manufacturer’s technical specifications before ordering to ensure the valve is suitable for your application.
The VIP Cast Iron Double Regulating Valve is rated PN16 and is designed in accordance with the relevant product standards. Refer to the product datasheet for detailed information about materials, operating conditions and flow characteristics.
Explore the VIP commissioning valve range for additional products designed for water flow regulation, measurement and system balancing.
00/0121 Datasheet (PN16 Cast Iron Double Regulating Valve)
Download
